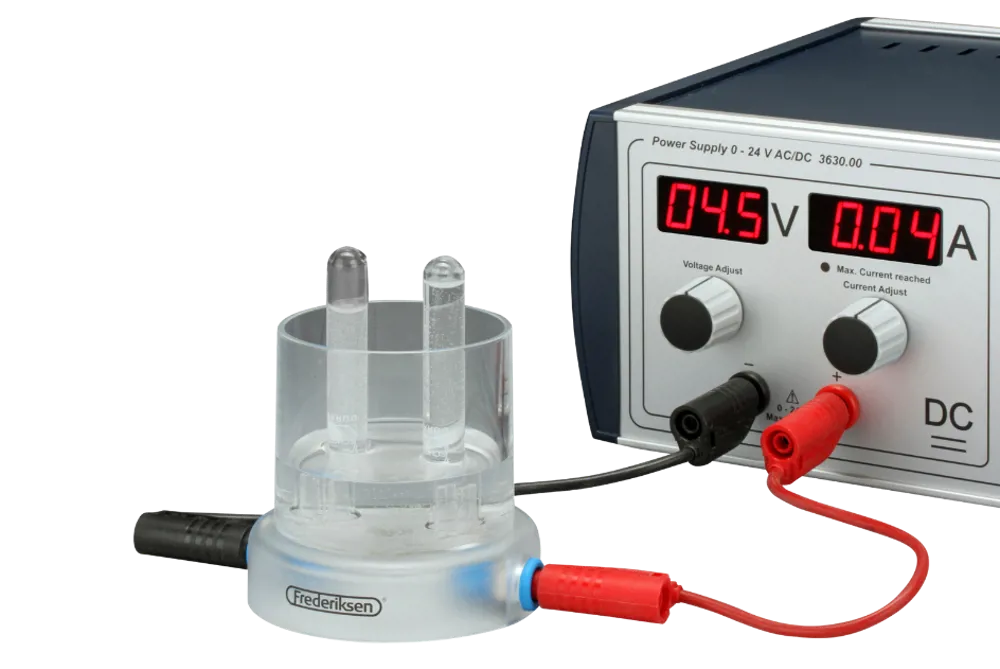

Voltameter, electrolysis tank, student version
The electrolysis vessel is made of clear acrylic with embedded platinum electrodes in the bottom, and has internal dimensions of Ø 61 x 56 mm (160 mL). It is used for experiments with electrolysis, where hydrogen and oxygen can be produced from a liquid, typically a 1 M dilute sulfuric acid solution as electrolyte. Maximum supply voltage for the electrolysis is 5 V DC, connected via safety sockets. External dimensions are Ø 87 x 76 mm.
Use of the product
The electrolysis vessel is used in physics and chemistry lessons to demonstrate the electrolysis process, where students can detect and collect hydrogen and oxygen. With the purchase of the lid (FR-453005), the produced hydrogen can be collected in mini test tubes for further use, for example in fuel cells. It provides a practical understanding of electrolysis and energy conversion, which can be linked to topics about renewable energy and fuel cell technology.
Specifications
- Dimensions: (ø xh) 87 mm x 76 mm
- Material: Acrylic
- Voltage: 5V
- Diameter: 87 mm
Made from acrylic, with embedded platinum electrodes.
The supplied mini test tubes (012110) are used to collect oxygen and hydrogen.
Equipped with safety sockets. Use dilute sulphuric acid as the electrolyte.
Interior dimensions: Ø 61 x 56 mm (160 mL).
The Lid for the Voltameter can be added at item number FR-453005.
Voltage for the Voltameter is 5 V DC. (can be added by item number FR-361600).
