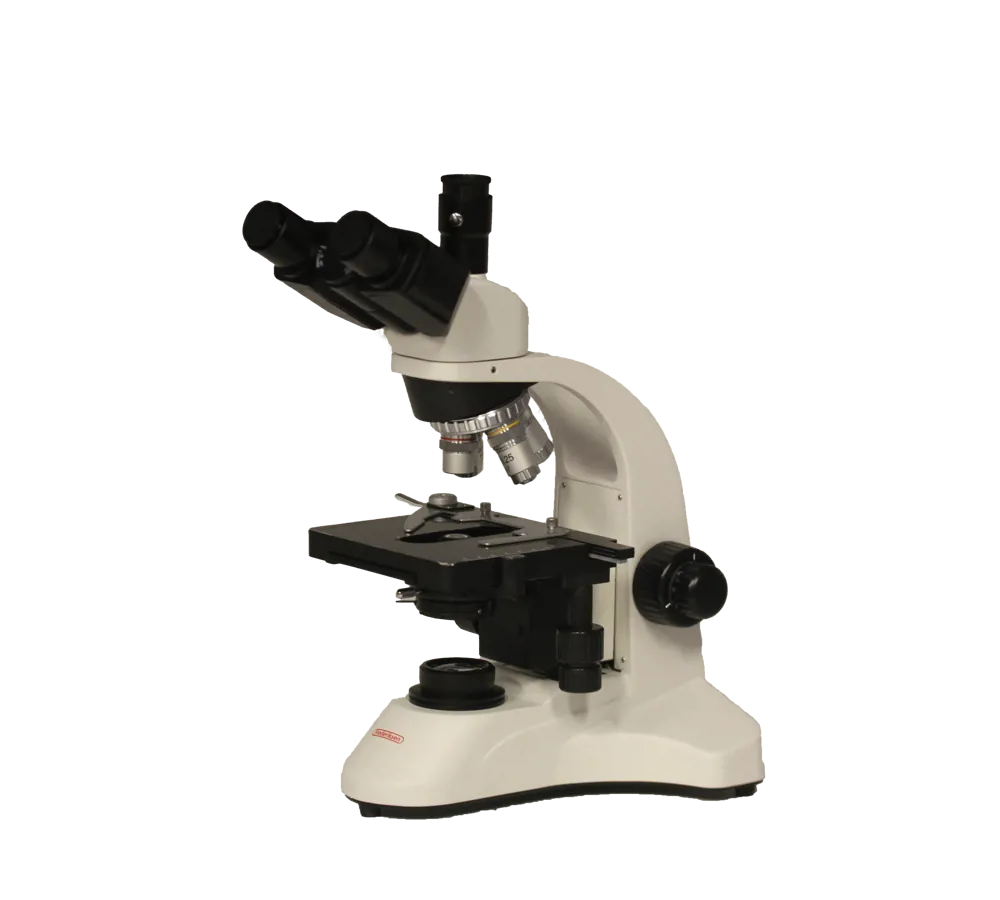

Microscope FS-1 Plus, trinocular 60x
Trinocular microscope with semi-plan objectives that ensure high detail contrast and good color rendering, as well as minimal curvature in the periphery of the field of view. The microscope is equipped with a third tube, making it an obvious choice when taking detailed documentation of micropreparations and diagnostic findings in educational environments, as well as in laboratories and clinics.
Description
The four semi-plan objectives simultaneously allow good magnification of everything from insect parts to larger cell organelles. The eyepiece’s 10x magnification together with the objectives gives a total magnification of 40x, 100x and 400x and 600x.
Please note that the 60x objective can be used for observation of some bacteria, but is not suitable for procedures where bacteria need to be species determined or where small cell organelles need to be observed. The objective provides good clear magnification when studying blood and semen smears, etc. If higher magnification is desired, a 100x semi-plan objective for use with immersion oil (076885) can be purchased.
Focusing is done with coaxial coarse and fine screws on the side of the microscope that move the cross stage up and down. The light is built-in LED lighting that is adjusted via a knob on the microscope base, while contrast and depth of field are adjusted with a condenser and aperture under the cross stage.
The microscope is supplied with a dust cap.
Technical data:
- Eyepiece tube: Trinocular – camera connection option
- Eyepiece: 10x widefield (wide angle) in pairs/ ø18 mm
- Lens clamp: Swing arm
- Lenses: Semi-plan
- 4x NA 0.10
- 10x NA 0.25
- 40x NA 0.65 (spring front)
- 60x NA 0.85 (spring front)
- Lens turret: Rear-facing with space for 4 lenses
- Magnifications: 40x, 100x, 400x, 600x
- Condenser: Abbé condenser NA 1.25 with filter holder. Adjustable in height.
- Aperture: Iris diaphragm for stepless adjustment of brightness, contrast and depth of field.
- Lighting: Built into the microscope base. 3 W LED with stepless regulation.
- Focusing: Coaxial coarse and fine adjustment.
- Specimen protection: Built-in protection against accidental destruction of micro-specimens during focusing.
- Cross table: Integrated heavy-duty cross table with low-hanging coaxial operation via coarse and fine screws
- Power cord: Power cord with power adapter
- Battery: None
- Application: Insect parts, zooplankton, phytoplankton, plant cells, animal cells, some mitotic chromosomes, cell nuclei, as well as fungi and some bacteria
Use of the product
The microscope can be used for diagnostic use in laboratories and clinics or in educational environments where more precise observations need to be made of cells and tissue structures.
The microscope’s objective type ensures clear and high-contrast images that can be cast to a screen or transferred to a PC via a camera solution. A good microscope for examining, for example, tissue samples, blood cells or for diagnostic analyses of stool and vaginal discharge.
Specifications
- Magnification (x): 40, 100, 400, 600
- Tube type: Trinocular
