Product Details

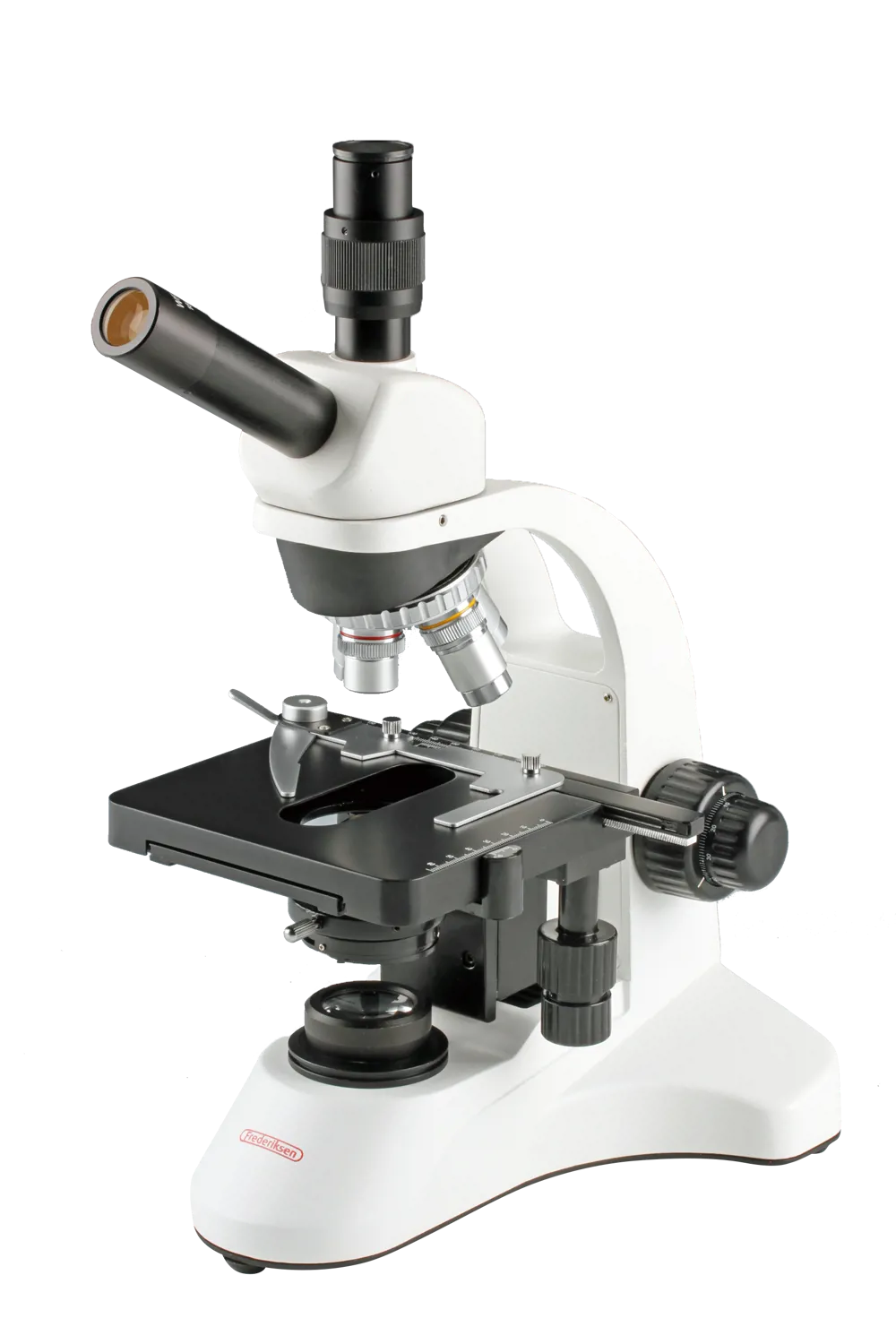

Microscope FS-1, monocular, vertical, 60x
Microscope with LED light, nice design and good value for money. An obvious choice for demonstration use in primary schools, as it is of course equipped with a 60x objective as the largest objective and a vertical tube for camera use.
Description
There is therefore no need for immersion oil or cumbersome cleaning after use, and the vertical tube can be used for microscope cameras with a built-in eyepiece. This ensures a good, stable setup, and the camera can be easily replaced if needed.
It is also possible to insert a standard eyepiece (optional accessory) into the vertical tube, thereby using it for inspection or enabling two students to look into the microscope simultaneously. Can also be used with smartphone adapter 565606)
The microscope is equipped with a cross stage, rear-facing objective turret and adjustment knob with both fine and coarse focus. All of which makes the microscope very user-friendly when focusing on an exciting micro-preparation. A T-shaped foot ensures that the microscope stands stable while also making it easier to operate.
The FS-1 microscope is also available in a monocular version with a 60x objective and a binocular version with either a 60x objective or a 100x objective as the highest magnification. Find these variants under related products.
Supplied with dust cap.
Information:
- Eyepiece tube: Monocular with vertical tube
- Objectives: Achromatic 4x NA 0.10 10x NA 0.25 40x NA 0.65 (spring front) 60x NA 0.85 (spring front)
- Lens turret: Rear-facing with space for 4 lenses
- Eyepiece: 10x widefield (1 pc.) Magnifications: 40x, 10x, 400x, 600x.
- Condenser: Abbé condenser NA 1.25 with filter holder. Adjustable in height.
- Aperture: Iris diaphragm for stepless adjustment of brightness, contrast and depth of field.
- Lighting: Built into the microscope base. 3 W LED with stepless regulation.
- Focusing: Coaxial coarse and fine adjustment.
- Specimen protection: Built-in protection against accidental destruction of micro-specimens during focusing.
- Crossover: Integrated heavy-duty crossover with low-hanging coaxial control.
Use of the product
You can use the microscope in biology lessons where clear demonstrations are needed for the whole class, e.g. when observing cell preparations or small organisms. It is easy to connect a camera, so you can show preparations on a large screen or share observations digitally. The microscope is also suitable for group work, where several students work together on precise examinations. The microscope can also be used in laboratories, museums or veterinary clinics, where a stable, flexible and camera-compatible microscope is needed.
Specifications
- Magnification (x): 100, 40, 400, 600
- Tube type: Monocular
