Product Details

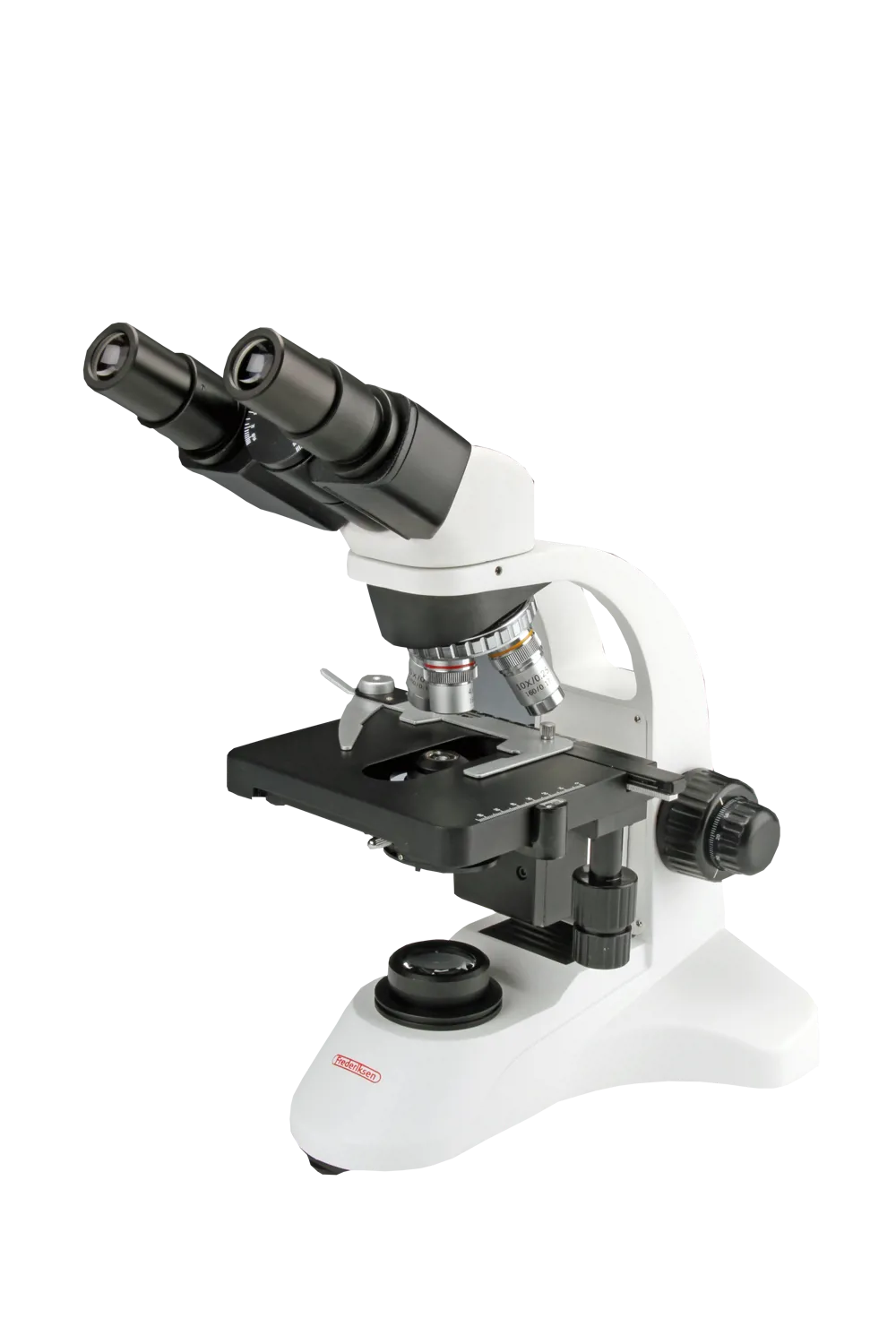

Microscope FS-1, binocular 60x, with battery
The FS-1 microscope is a versatile, battery-powered microscope with LED illumination and a binocular tube.
Description
It is equipped with achromatic objectives (4x, 10x, 40x and 60x), where 40x and 60x have spring-loaded fronts. The magnifications range from 40x to 600x. The microscope has a sharp field of view with good contrast and minimal image distortion. The built-in cross stage, coaxial coarse and fine focus and Abbé condenser (NA 1.25) make it suitable for educational use.
The rechargeable battery makes it possible to work without access to power and thus take the microscope into nature. It takes approximately 3 hours to recharge the battery.
A good and versatile microscope with LED light and rechargeable battery, – an obvious choice for student use in elementary and high schools.
Supplied with dust cap.
Use of the product
The FS-1 is used in biology classes to study cells, tissues, microorganisms and small animals. The 60x objective allows students to view bacteria without immersion oil, making the workflow easier in a classroom setting. The microscope is also suitable for field work, where battery operation makes it possible to examine samples directly in nature.
Specifications
- Battery type: Rechargeable
- Magnification (x): 100, 40, 400, 600
- Eyepiece tube: Binocular
- Lens turret: Rear-facing with space for 4 lenses
- Eyepiece: 10x widefield in pairs
- Condenser: Abbé condenser NA 1.25 with filter holder, height adjustable
- Aperture: Iris diaphragm for stepless adjustment of brightness, contrast and depth of field
- Lighting: Built into the microscope base; 3 W LED with stepless regulation
- Focusing: Coaxial coarse and fine adjustment
- Specimen protection: Built-in protection against accidental destruction of micro-specimens during focusing
- Crossover: Integrated heavy-duty crossover with low-hanging coaxial control
