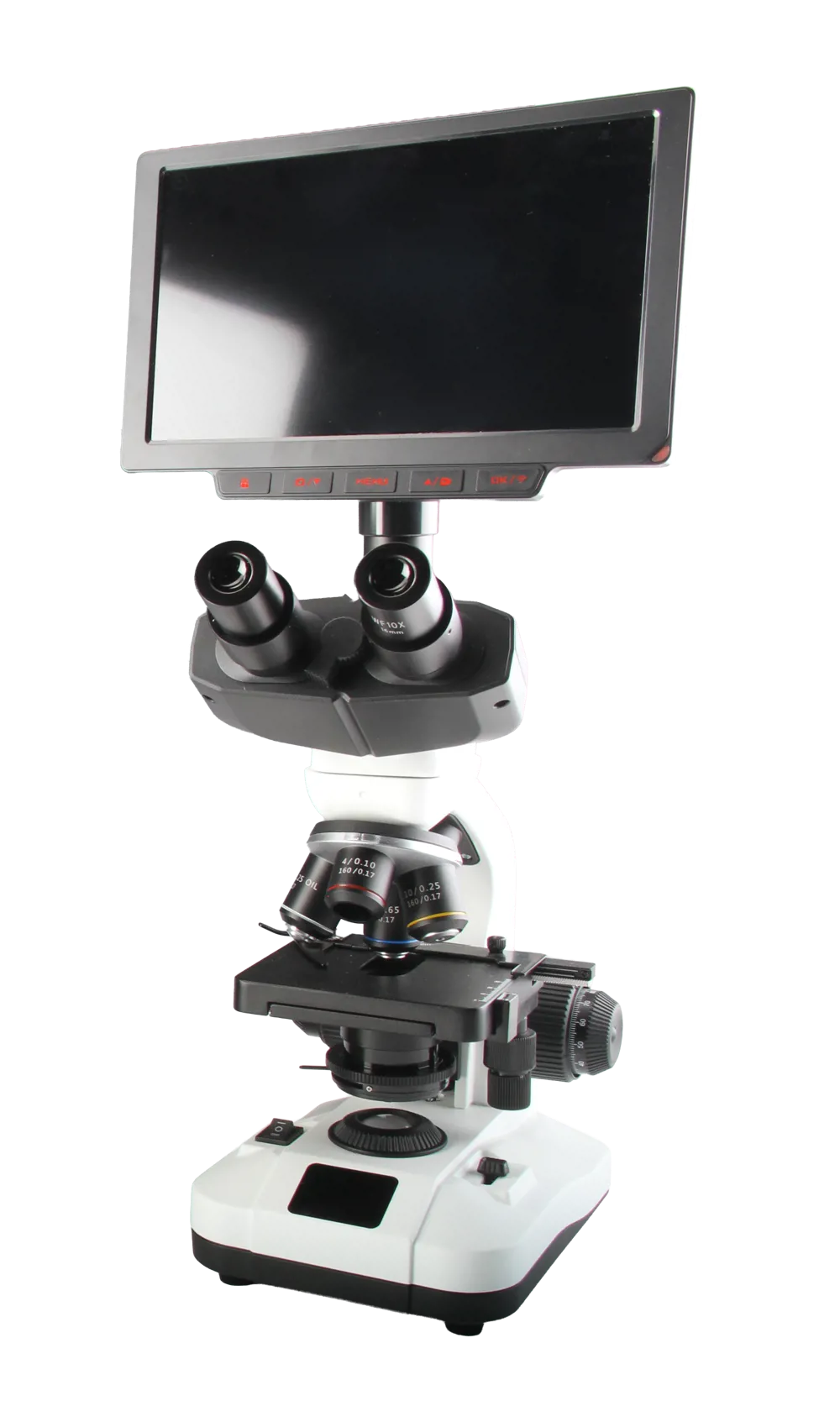

Microscope, Essential, Digital with 9″ screen
Fantastic trinocular microscope in a new design equipped with a removable 9” LCD screen with a resolution of 1024 x 600 and a pixel size of 02 µm. The camera screen is connected to the microscope via the camera tube and can be easily mounted and removed. The screen is turned on separately and has an internal menu for setting various visual parameters such as brightness and contrast. The screen can record images and video sequences of objects on the cross table, and these can be transferred directly to a PC or mobile phone via WIFI, HDMI, USB or SD card (8G, included). The associated APP software is compatible with Android, iOS and Windows.
Description
On the front of the microscope base there is a small digital display where temperature, battery status and lighting can be read. The included wireless mouse is used to mark structures on the screen during length and width measurements.
The microscope’s 18 mm eyepiece ensures a good size of the field of view. The 4 objectives in the turret have achromatic lenses with a magnification of 4x, 10x, 40x and 100x respectively, while the Abbé condenser under the cross stage allows you to focus the light on the current object so that contrast, colors and details are optimal.
The eyepiece and objectives provide a total maximum magnification of 1000x, making the microscope a good choice for studying animal and plant cells, fungi and bacteria. The objective with 100x magnification is an oil lens and requires immersion oil to magnify properly.
The microscope’s on/off switch and brightness control are located on the side of the base and allow for easy brightness control during microscopy. The overhead light allows the microscope to function as a kind of stereo magnifier in some cases.
The microscope has a rechargeable battery and can be taken out for current tasks that take place outside the laboratory or classroom.
Technical data:
- Eyepiece tube: Binocular with camera tube
- Eyepiece: 10x widefield (wide angle) in pairs/ ø18 mm
- Lens clamp: Swing arm
- Objectives: Achromatic
- 4x NA 0.10
- 10x NA 0.25
- 40x NA 0.65 (spring front) Objective turret: Rear-facing with space for 4 objectives
- 100x NA 1.25 (spring front), for immersion oil
- Magnifications: 40x, 100x, 400x, 1000x
- Condenser: Abbé condenser NA 1.25 with filter holder. Adjustable in height.
- Aperture: Iris diaphragm for stepless adjustment of brightness, contrast and depth of field.
- Lighting: Built-in bottom light in the microscope base: 1 W LED with stepless regulation. Top light 0.06 W LED.
- Focusing: Coaxial coarse and fine adjustment.
- Specimen protection: Built-in protection against accidental destruction of micro-specimens during focusing.
- Cross table: Integrated heavy-duty cross table with low-hanging coaxial operation via coarse and fine screws
- Power cord: Power cord and power adapter for recharging batteries
- Battery: Rechargeable (type18650)
- Application: Insect parts, zooplankton, phytoplankton, plant cells, animal cells, mitosis chromosomes, some intracellular components including cell nuclei, as well as fungi and bacteria
Use of the product
Fantastic microscope with multiple applications for work in laboratories and clinics as well as in teaching situations where cells and cell organelles need to be observed and documented. It simply doesn’t get any easier.
Specifications
- Weight (kg): 4.5 kg
- Brand: LabField
- Dimensions: (lxwxh) 19 cm x 14 cm x 48 cm
- Magnification (x): 40, 100, 400, 1000
- Length: 19 cm
- Tube type: Trinocular
- Height (cm): 48 cm
