Product Details

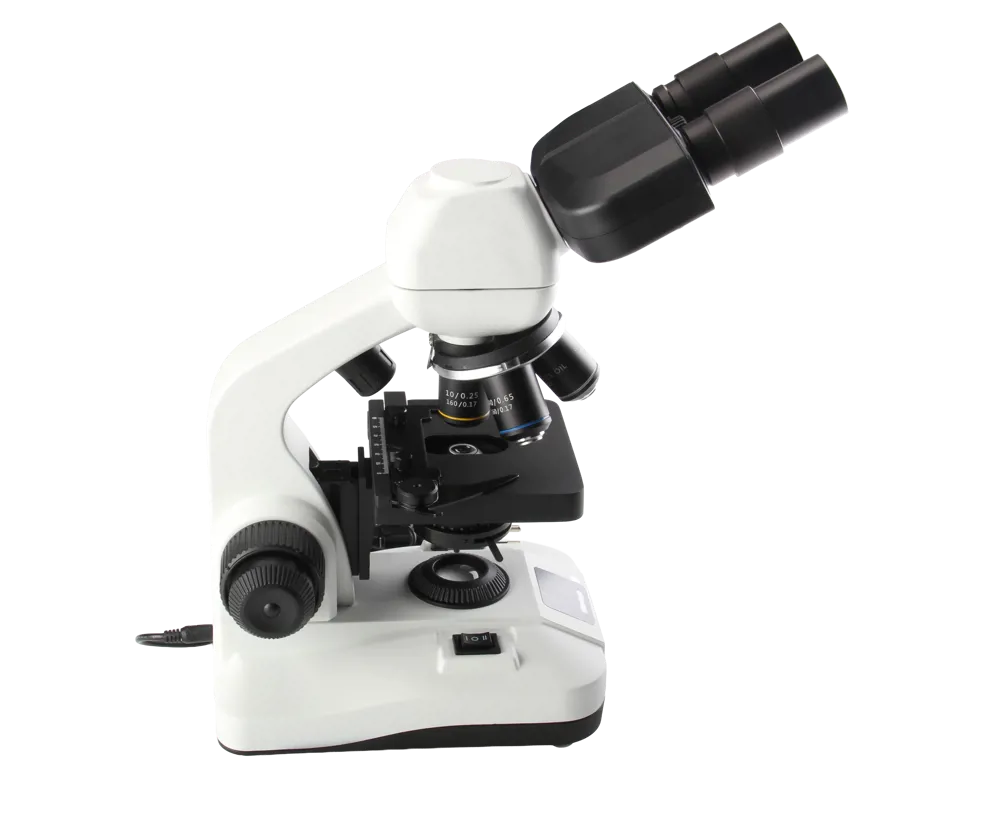

Microscope, Essential, Binocular, with battery
Binocular microscope in a new design equipped with LED lights both under and above the cross stage. The microscope’s 18 mm eyepiece ensures a good size of the field of view. The 4 objectives in the turret have achromatic lenses with a magnification of 4x, 10x, 40x and 100x respectively, while the Abbé condenser under the cross stage allows you to focus the light on the current object so that contrast, colors and details are optimal.
Description
As an extra feature, the temperature on the object stage and the battery level can be read on the microscope’s front display. On the front of the microscope’s base there is a small digital display where temperature, battery status and lighting can be read.
The eyepiece and objectives provide a total maximum magnification of 1000x, making the microscope a good choice for studying animal and plant cells, fungi and bacteria. The objective with 100x magnification is an oil lens and requires immersion oil to magnify properly.
The microscope’s on/off switch and brightness control are located on the side of the base and allow for easy brightness control during microscopy. The overhead light allows the microscope to function as a kind of stereo magnifier in some cases.
The microscope has a rechargeable battery, so it can be taken out for current tasks that take place outside the laboratory or classroom, and is supplied with a battery charger and dust cap.
Technical data:
- Eyepiece tube: Binocular
- Eyepiece: 10x widefield (wide angle) in pairs/ ø18 mm
- Lens clamp: Swing arm
- Objectives: Achromatic
- 4x NA 0.10
- 10x NA 0.25
- 40x NA 0.65 (spring-loaded front) Objective turret: Rear-facing with space for 3 objectives
- 100x NA 1.25 (spring front), for immersion oil
- Magnifications: 40x, 100x, 400x, 1000X
- Condenser: Abbé condenser NA 1.25 with filter holder. Adjustable in height.
- Aperture: Iris diaphragm for stepless adjustment of brightness, contrast and depth of field.
- Lighting: Built-in bottom light in the microscope base: 1 W LED with stepless regulation. Top light 0.06 W LED.
- Focusing: Coaxial coarse and fine adjustment.
- Specimen protection: Built-in protection against accidental destruction of micro-specimens during focusing.
- Cross table: Integrated heavy-duty cross table with low-hanging coaxial operation via coarse and fine screws
- Power cord: Power cord and power adapter for recharging batteries
- Battery: Rechargeable (type18650)
- Application: Insect parts, zooplankton, phytoplankton, plant cells, animal cells, mitosis chromosomes, some intracellular components including cell nuclei, as well as fungi and bacteria
Use of the product
The microscope is an essential instrument for work in laboratories and clinics, as well as in teaching situations where prokaryotes, eukaryotes, fungi and bacteria are studied.
Specifications
- Weight (kg): 2.8 kg
- Brand: LabField
- Dimensions: (lxwxh) 19 cm x 14 cm x 34 cm
- Magnification (x): 40, 100, 400, 1000
- Length: 19 cm
- Tube type: Binocular
- Height (cm): 34 cm
