Laplace Force Demo with Magnet

Demonstrates the forces on a current-carrying wire in a magnetic field.

SKU: SF-7279 Categories: , Tags: ,

Share this product

Description

Demonstrates the forces on a current-carrying wire in a magnetic field.

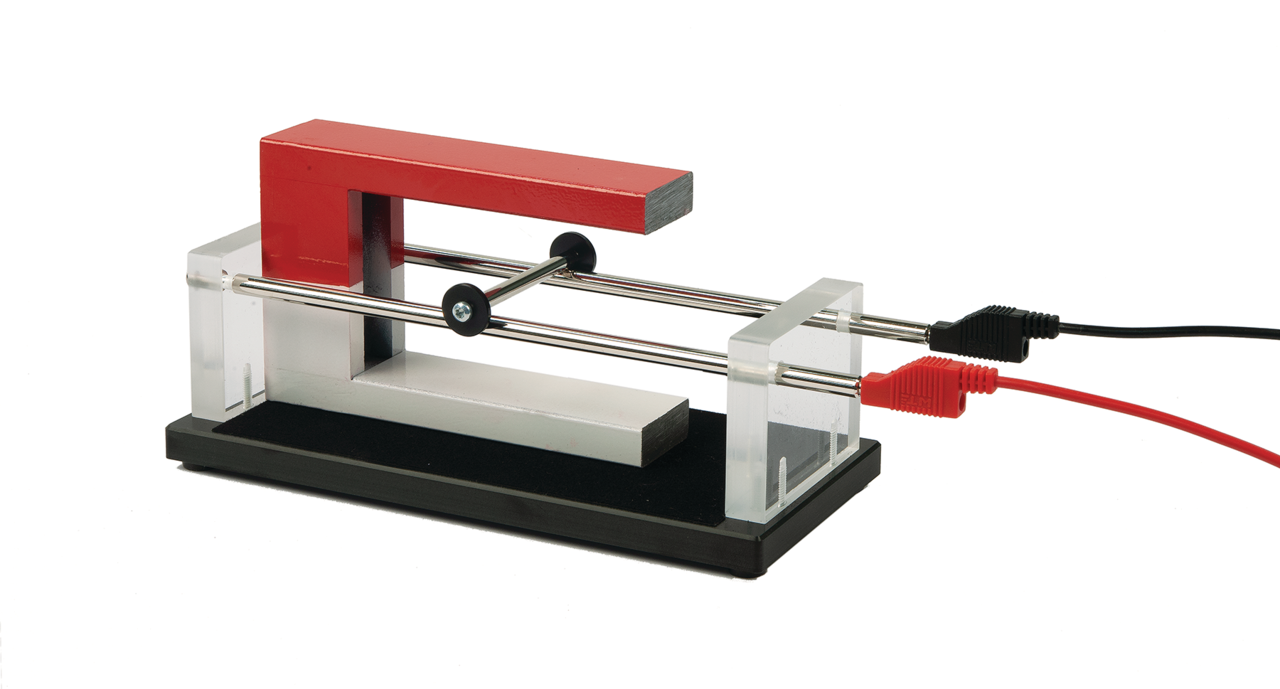

When the conducting rod is placed on the rails and a current (maximum 10 A) runs through the rails, the rod will be affected by a force, making it roll perpendicular to the magnetic field along the rails.The apparatus consists of a pair of rails with 4 mm diameter terminals. The conductor consists of a bar with plastic discs that is placed across the rails. The included alnico Horseshoe Magnet (SF-7225) is used as a magnet.
