Helmholtz Coil Base

Allows mounting and changing of distance between field coils and is used for studies in electromagnetism.

Share this product

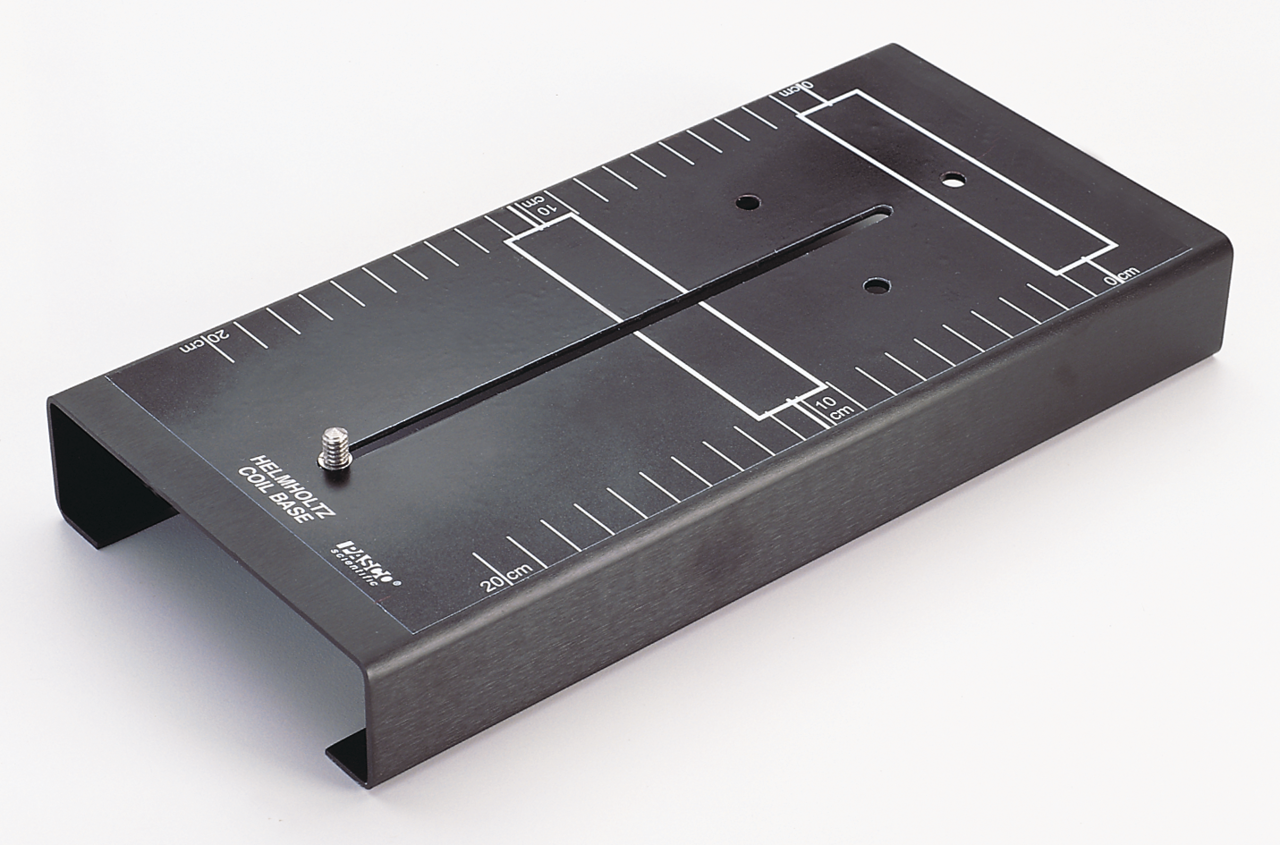

The Helmholtz Coil Base is for mounting two PASCO Field Coils to provide a uniform magnetic field between the coils. The base has a slot that allows the coils to be spaced apart at any distance from 3 cm to 20 cm (center-to-center distance). The proper separation for Helmholtz coils (i.e., the radius of the coils) is marked on the base. Two 0.635 cm (0.25 inch) diameter holes between the coils accommodate mounting devices in the uniform magnetic field.

Coils not included.
