Coils & Cores
Air Core Solenoid
Air Core SolenoidProduces a uniform magnetic field when current is applied through wires.
Basic Coil Set
Basic Coil SetBasic set of four high quality coils and a laminated iron core. Provides an effective introduction to electromagnetic theory.
Coil f. student transformer, 400 turns
Coil f. student transformer, 400 turnsde from coloured plastic with safety sockets.
The coil is fitted with a transparent polyester film with an effective dielectric strength of more than 4500 V to prevent electric shocks.
Coil f. student transformer, 1600 turns
Coil f. student transformer, 1600 turnsMade from coloured plastic with safety sockets.
The coil is fitted with a transparent polyester film with an effective dielectric strength of more than 4500 V to prevent electric shocks.
Coil f. student transformer, 200 turns
Coil f. student transformer, 200 turnsMade from coloured plastic with safety sockets.
The coil is fitted with a transparent polyester film with an effective dielectric strength of more than 4500 V to prevent electric shocks.
Coil f. student transformer, 3200 turns
Coil f. student transformer, 3200 turnsMade from coloured plastic with safety sockets.
The coil is fitted with a transparent polyester film with an effective dielectric strength of more than 4500 V to prevent electric shocks.
Coil f. student transformer, 800 turns
Coil f. student transformer, 800 turnsMade from coloured plastic with safety sockets.
The coil is fitted with a transparent polyester film with an effective dielectric strength of more than 4500 V to prevent electric shocks.

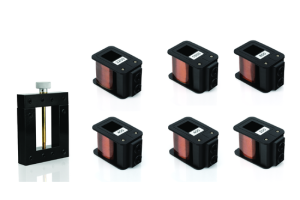

Complete Coil Set
Complete Coil SetComplete set of six high quality coils (from 200 to 3200 turns) and two laminated iron cores (U-shape and E-shape). Provides an effective introduction to electromagnetic theory.
E-core, laminated
E-core, laminated- For demonstrating a 3-phase transformer.
- Compatible with coils FR-462510-40.
- Set with upper and lower core on a base.
Economy Coils, Primary and Secondary
Economy Coils, Primary and SecondaryA low cost option for investigating electromagnetic induction and transformer principles.
Helmholtz Coil Set, 500 Turn
Helmholtz Coil Set, 500 TurnConsists of two coils mounted on a base to provide a uniform magnetic field between the coils.
Helmholtz Coils
Helmholtz CoilsConsists of two coils mounted on a base to provide a uniform magnetic field between the coils. 200-turn coils.
Primary and Secondary Coils
Primary and Secondary CoilsProvide a look at magnetic induction and transformer theory.
Primary/Secondary Coils – COMING SOON
Primary/Secondary Coils – COMING SOONCOMING JUNE 2026
These nested primary and secondary coils have a removable soft iron core.
Transformer Coils Set
Transformer Coils SetSet of six high quality coils and a laminated iron core
